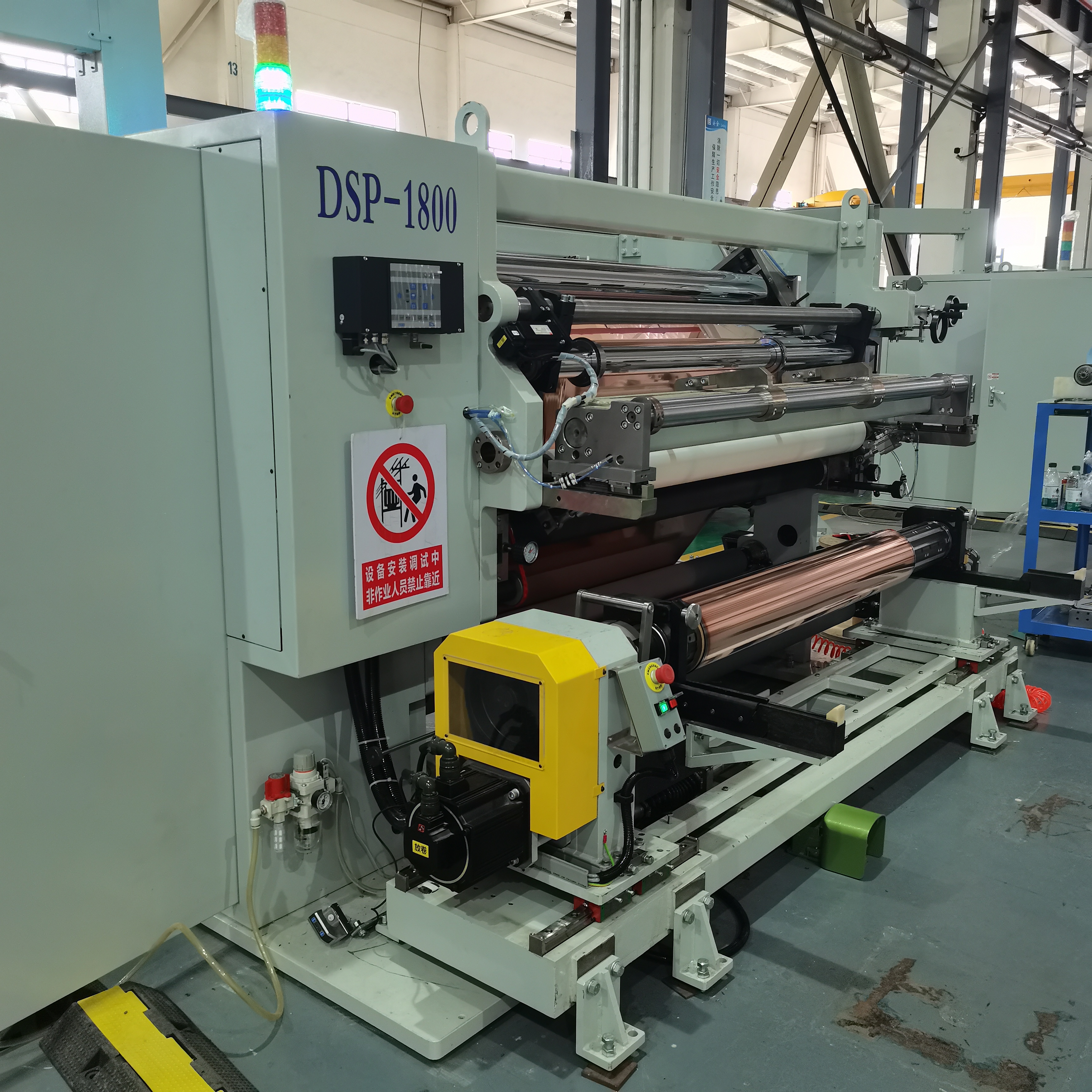

DSP Series 1800 Slitting Rewinder Machine
The high-performance Slitting Rewinder Machine is professionally
used in composite current collector materials such as PET+Cu, OPP+Cu, PET+Al, PET, OPP etc.
A. Unwinding Device
B. Slitting Device
Type: Circular knife slitting method, Upper circular cutter shaft
is independently driven with adjustable speed
C. Rewinding Device
Type, Slip Shaft, Tension control, Touch Pressure, Remove static electricity, Meter
accuracy
D. Transmission Control
Drive, Flattening Roller, Touch Roller, Guiding Roller
E. Electrical Control
1. Horizontal movement and front-end winding method
2. Large touch screen human-machine operating system
3. Unwinding and rewinding CNC AC servo drive
4. Circular knife slitting
5. Automatic unwinding correction
6. Anti-static function for winding
7. Independent waste collection device and negative pressure waste
collection device
| Substrate | PET+Cu, OPP+Cu, PET+Al, PET, OPP |
| Substrate Width | 1000mm~1650mm |
| Mechanical Speed | Max. 150m / min |
| Slitting Width | 250mm-1650mm |
| Substrate Thickness | 3μm-12μm |
| Rewind diameter | Max. 450mm |
| PLC | Germany Beckhoff |
| Electricity | 3 phase * 380 volt *50Hz
|
OUR WORKSHOP
FAQ
Q: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q: Which countries have you exported to?
A: We have exported our products to all over the world, such as
Europe, USA, Japan, Korea, India etc.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for
all machinery.
The response is available within 12 hours while the solution for
the troubleshooting is provided within 48 hours.
Q: Payment Terms
A: TT 30% in advance, 70% before shipment.
