    White Independent Arm Type Slitting Rewinder Machine Unwinding Diameter 450mm

    Ask Lasest Price
    Brand Name : DST
    Model Number : DSL-1350
    Certification : SGS
    Price : Based on Specification
    Payment Terms : T/T
    Supply Ability : 7 sets in 4 months
    Delivery Time : Around 4 months
    • Product Details
    • Company Profile

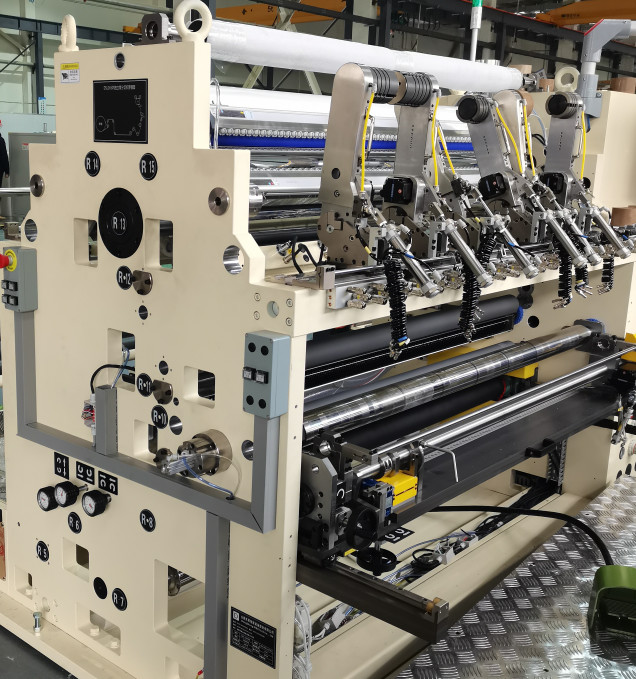

    White Independent Arm Type Slitting Rewinder Machine Unwinding Diameter 450mm

    Independent Arm Slitting Rewinder Machine


    DSL-1350 high-performance CNC slitting machine is specially used for materials such as lithium-ion battery separators.


    Function

    • A horizontal movement and front-mounted rewinding method
    • Large screen touch human-machine operating system
    • One unwinding and rewinding CNC AC servo drive
    • One horizontal moving knife holder, straight knife slitting; round knife slitting (optional)
    • Automatic correction as soon as the roll is unrolled
    • One-winding and static-removing function
    • A safety protection measure
    • A reserved installation location for defect detection

    Electricity

    • 3 phase x 380 volt x 50 Hz
    • Connected power: approx. 20 kVA
    • Average consumption: approx. 15 kW
    • Voltage variation: <±10%
    • Compressed air
    • Clean compressed air free from moisture, dirt and oil
    • Pressure (entering the device interface): Approx. 5-6 bar gauge

    Technical Data


    Substrate Thickness7μm-30μm
    Substrate Width500mm-1250mm
    Slitting widthMin. 30mm
    Electricity3 phase * 380 volt *50Hz
    Unwinding diameterMax. 450mm
    Rewinding diameter.Max. 300mm
    Mechanical Speed

    200m/min

    ControlPLC
    Operation screenColorful touch screen , HMI
    Power supplyAC380V, 50Hz, 3Phase


    White Independent Arm Type Slitting Rewinder Machine Unwinding Diameter 450mm

    Competitive Advantages

    • We offer high quality products;
    • Customs clearance is guaranteed;
    • Good after-sale service;
    • Flexible payment terms;
    • With excellent products and efficient services, we are well known both at home and abroad.

    Packaging & Delivery


    1. Prompt delivery;
    2. Professional logistic agent;
    3. Well-trained and disciplined packing team;
    4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.



    Our Workshop




    Our Customers

    Multi-Function Magnetron Sputtering Metallizer Used For Coating PET Film 6


    FAQ


    Q1: Where is your factory located? Can I visit it before I place an order?
    A: Of course, warmly welcome to visit our factory. Our factory is located in Hefei, Anhui, China.
    Q2: Which countries have you exported to?
    A: We have exported our products to all over the world, such as Europe, USA, Japan, Korea, India etc.
    Q3: How about the warranty and after-sale service?
    A: We provide 12 months warranty and lifetime technic suport for all machinery.
    The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
    Q4: Machine installation
    A: We could assign the technician to the place for the on-site installation if requested by the purchaser.
