    30 Micron Extraction Winder DSH-Series Extraction Box accurate temperature control

    Ask Lasest Price
    Brand Name : DST
    Model Number : DSH
    Certification : SGS
    Price : Based on specification
    Payment Terms : T/T
    Supply Ability : 4 sets in four months
    Delivery Time : around 4 months
    • Product Details
    • Company Profile

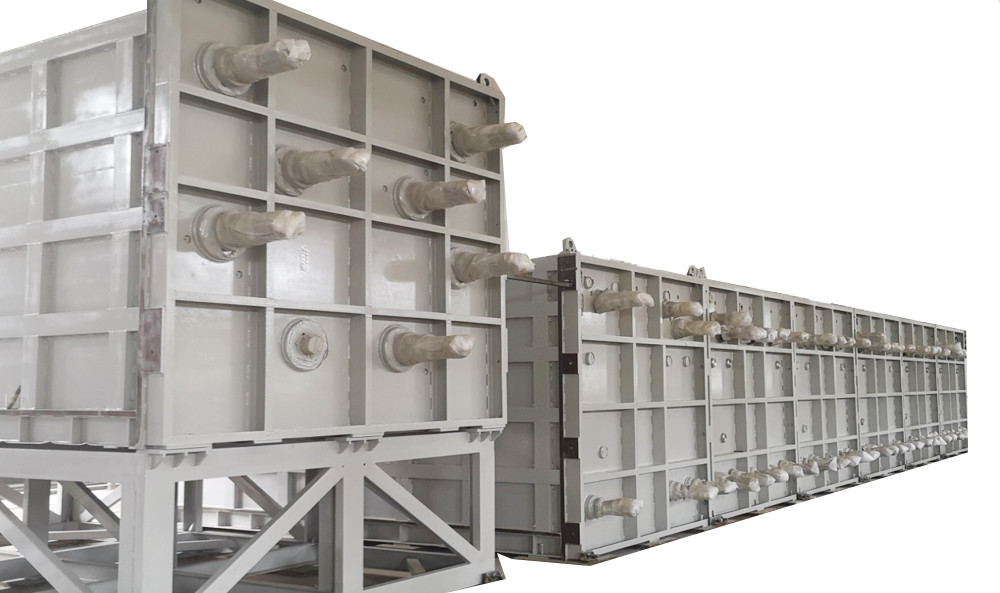

    30 Micron Extraction Winder DSH-Series Extraction Box accurate temperature control


    DSH-Serie High Efficiency Extraction Winder Used For Producing Wet-Process Li-Ion Battery Separate Film


    Extraction refers to the transfer of compounds from one solvent to another by using the difference of solubility or partition coefficient in two mutually insoluble (or slightly soluble) solvents. After repeated extraction, most of the compounds are extracted.


    30 Micron Extraction Winder DSH-Series Extraction Box accurate temperature control30 Micron Extraction Winder DSH-Series Extraction Box accurate temperature control


    Technical Data


    ParameterSpecification
    SubstrateWet-process separator
    Film WidthInlet: 6800mm
    Film ThicknessOutlet: 4~30μm
    SpeedMax mechanical speed: 130m/min, Production speed: 80-120m/min
    Roller Surface Length7000mm
    Film Guiding MethodElectric zoning
    Extraction LiquidDichloromethane
    Extraction Immersion LengthApprox. 110m
    Film Length in Drying OvenRoller surface: approx. 12m, In-tank: approx. 24m
    Drying Gas RecoveryMax 9000m³/h (Optional atmospheric condensation system)
    New Liquid SupplementReserved liquid supplement port DN80
    Waste Liquid RecoveryProduction overflow discharge: 5-25m³/h; Shutdown discharge: 80m³/h
    Solvent VolumeSix tanks, approx. 320 m³ in total
    Tank Structure- Film Inlet Tank Support Assembly: 1 set
    - Cleaning Tanks: 6 sets
    - Transition Tank: 1 set
    - Drying Ovens: 2 sets
    - Film Outlet Tank Support Assembly: 1 set
    Total Equipment Weight550t


    Features


    1. Servo-Driven Upper/Lower Rollers
    2. Excellent Sealing Performance
    3. High Extraction Efficiency
    4. Accurate Drive Control
    5. Accurate Temperature Control

    Competitive Advantages


    1. We offer high quality products at competitive price;
    2. customs clearance is guaranteed;
    3. Good after-sale service;
    4. Flexible payment terms;
    5. With excellent products and efficient services, we are well known both at home and abroad.


    Packaging & Delivery


    1. Prompt delivery;
    2. Professional logistic agent;
    3. Well-trained and disciplined packing team;
    4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

    High Speed BOPP Plastic Film Slitter Rewinder Machine With Margin Tracking System Used For Slitting Film 3

    Our Factory


    Dongheng(dswintec.com) located in HeFei city and SuZhou city, Dongsheng M&E Tech Co.,Ltd. is a well-known manufacturer of functional-film equipments. The company specializes in manufacturing vacuum coating machines, splitting machines, rewinding machines, bidirectional film-pulling machines, and other related equipments, for fields of electronic films, lithium battery separators, optical films, packing films, cooper/aluminum foil and others.

    Dongsheng is also equipped with well-qualified R&D personnel,and experienced mechanical and electrical application engineers. Oriented to customers requirements and satisfaction, Dongsheng is dedicated to provide integrated solutions for designing & manufacturing,upgrading & reconstruction for used equipments, process designing, equipment installation, technical consultation,and personnel training, from single devices to whole production lines.

    With excellent products and efficient services, DONGSHENG is obtaining more and more satisfaction and support from users at home and abroad.

    High Speed BOPP Plastic Film Slitter Rewinder Machine With Margin Tracking System Used For Slitting Film 5


    FAQ


    Q: Is Dongsheng a factory or trading company?

    A: Dongsheng is a factory.


    Q:Where is your factory located? Can I visit it before I place an order?

    A:Our factory is located in Hefei, Anhui,China; Welcome to visit our factory.


    Q: How about the warranty and after-sale service?

    A: We provide 12 months warranty and lifetime technic suport for all machinery.

    The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.


    Q. Machine installation

    A. We could assign the technician to the place for the on-site installation if requested by the purchase
