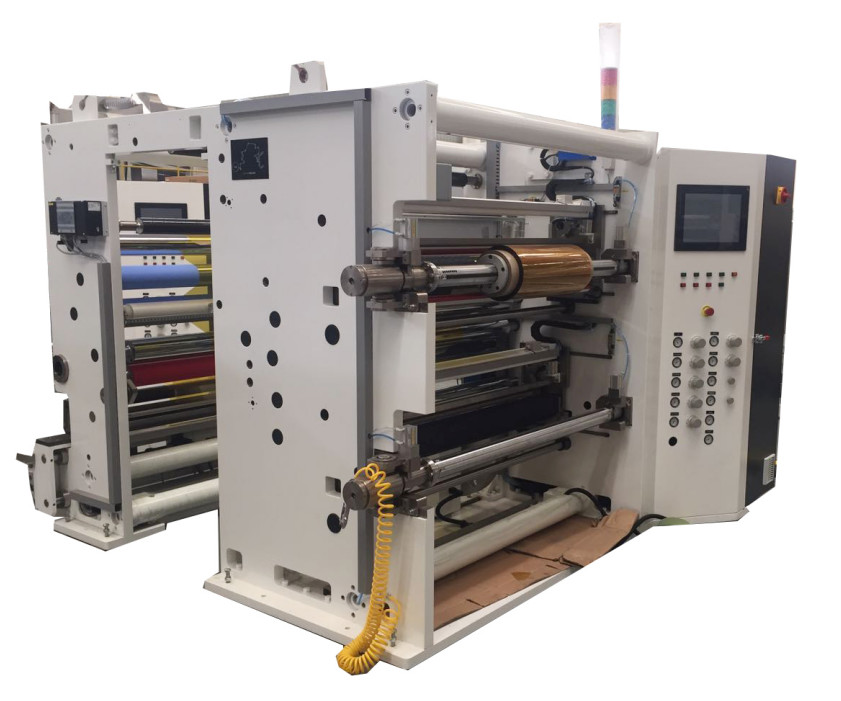

High Quality Film Slitting And Rewinding Machine With Margin
Tracking System Used For Slitting OPP And PET Films
Product Description
In slitting, rewinding, automatic control technology design and
R&D area, our team has rich experience in technology,
production and innovative explore. Our products can be applied to
various area such as new materials, film material, film processing,
etc.
Our slitter can meet the demands of high speed, high reliability
and slitting on line. It has reached international advanced level
and filled in the blank of domestic high-speed slitter. It adopts
the most advanced Servo System and controlling technology, adapting
to automatic tension control system and fitting the control of low
tension and high precision. With its advanced design and easy
operation, it can be directly equipped with the film producing
line.
Features
1. Horizontally moving, front placed rewind arms
2. Horizontally moving slitting cartridge
3. Controlled individual trim winder
4. Electrostatic Eliminator
5. Margin tracking system
6. Pre-clearing system
7. Operator-oriented graphic touch panel
8. Digital winding technique with AC servo drives
9. Closed-loop controlled unwind
10. Fault diagnostic function
11. Wave cutting system(Optional)
Technical Data
| Substrate | OPP. 2.0mic – 15mic ; PET. 2.7mic –15mic |
| Substrate Width | 500-1000mm |
| Substrate thickness | OPP:2.0μm-15μm;PET:0.8μm-12μm |
| Electricity | 3 phase * 200 volt *60Hz |
| Unwinding diameter | max. 650mm |
| Speed | max.500m/min |
| PLC | Beckhoff Germany |
| Operation screen | Colorful touch screen , HMI |
| Power supply | AC380V, 50Hz,three phase current |
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well
known both at home and abroad.
Packaging & Delivery
1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving
the product, please feel free to contact us. Problems would be
solved for you immediately.
Our Factory
FAQ
Q: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q:Where is your factory located? Can I visit it before I place an
order?
A:Our factory is located in Hefei, Anhui,China; Welcome to visit
our factory.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for
all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided
within 48 hours.
Q. Payment Terms
A. TT 30% down payment, 70% before shipment.
Q. Machine installation
A. We could assign the technician to the place for the on-site
installation if requested by the purchaser.
