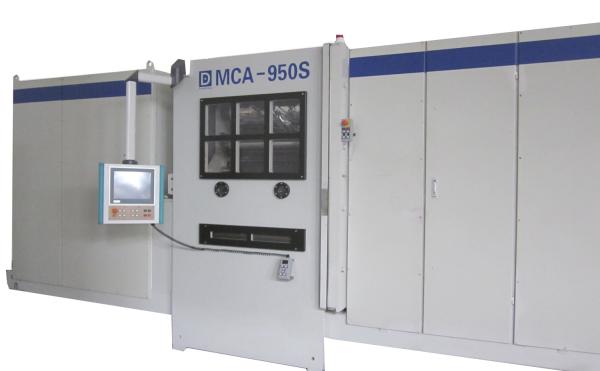

Vacuum Metalizing Machine Aluminum Coating Machine With Coating
Thickness Monitor
Product Description
COOLING WATE
| Pressure | 4 - 6 bar |
| Pressure drop when evaporator on | approx. 3 bar |
| Consumption | max. 25 m3/h |
| Average consumption | approx. 10 m3/h |
| Temperature (inlet) | min. 18℃ max. 25℃ |
| Temperature rise | approx. 5℃ |
| Carbonate hardness | 6 - 8o dh |
| PH value | 8 - 10 |
| particle size | max. 100 m |
| particle concentration | max. 10 parts/cm3 |
| CO2-content | max. 15 mg/l |
| Cl-content | max. 20 mg/l |
Technical Data
| Substrate | OPP,PET,PI,etc. |
| Substrate Width | max.1200mm |
| Substrate thickness | 0.1μm-1.5μm |
| Heating method | Evaporation boat |
| Power supply | AC380V 50Hz + PE |
| Coating material | metal, plastic, impregnated paper |
| Core diameter (inside) | 76 mm or 152 mm |
| Coating material | Al.only;Zn.,Al. |
Kind of coating | One side |
Basic Features
1. High precision winding-system:
Digital winding electronic, unwinding with transverse oszillation
possible. two different rewind mode.
2. Spreader roller:
Metal straight spreader rollers for uniform tension across the
total web width and uniform coating & rewinding.
3. Combined mode evaporation system for:
1)ALUMINIUM SOURCE
Thermal evaporator for resistance heated inter metallic composite.
Continuous aluminium wire feed system which can be observation
conveniently.
2)ZINC SOURCE
Radiation heated furnace for zinc evaporation. Nozzle plates for
uniform or reinforced edge coating.
4. Advanced oil masking system:
Advanced oil masking system for the production of unmetallised
stripes in web direction. Multi-position high precision remote
controlled adjustment of the oil-evaporator tube with digital
indication on the touch screen. Radiation oil heating & oil
pollution preventive design.
5. Precision process control:
Industry PC control system base on windows operation with BECKHOFF
TFT touch screen. Ethernet connection for easy remote diagnostic,
data loging and software update and with safety interlocking.
Application
Packaging & Delivery
1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving
the product, please feel free to contact us. Problems would be
solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well
known both at home and abroad.
Our Factory
Our customers
FAQ
Q: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q:Where is your factory located? Can I visit it before I place an
order?
A:Our factory is located in Hefei, Anhui,China; Welcome to visit
our factory.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for
all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided
within 48 hours.
Q. Payment Terms
A. TT 30% down payment, 70% before shipment.
Q. Machine installation
A. We could assign the technician to the place for the on-site
installation if requested by the purchaser.
Q: How do you control your quality?
A: Each process will be tested by our inspection department to make
sure the product quality.
