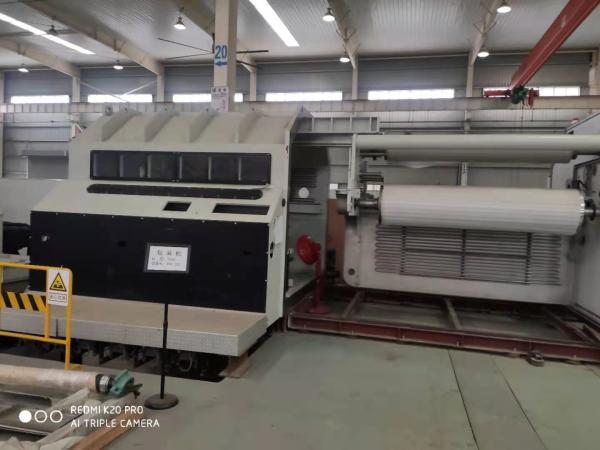

Metallizer Of Web Coating For Polymer Thin Film Metallizing
Industrial Vacuum Packaging Machine
Product Description
The system operates semi-continuously from roll to roll. The design
of the high vacuum web coating system is based on the two chamber
principle.
The vacuum chamber is separated into a winding - and a process
section.
Both sections are either with a roots blower or with an
intermediate diffusion pumps connected to a mechanical pump set to
gain the necessary pressure levels. When the working pressure is
reached, the material to be metallized is moved from the unwind to
the rewind side with adjustable speed while being exposed to the
evaporator. In order to maintain low substrate temperature the
substrate is in thermal contact with a machine cooled coating drum
during the coating process.
Technical Data
| Substrate | PET,OPP,CPP,Paper,etc. |
| Substrate Width | 1000mm-4000mm |
| Film thickness | 8μm-50μm |
| Roll diameter | max. 1500 mm |
| Speed | max,1000m/min |
PLC system | Siemens S7-400 series |
| Driving system | Siemens |
| Size | 14m×5.5m×2.8m
|
| Heating method | electric / oil |
Features
HIGH PRECISION WINDING-SYSTEM:
Digital winding electronic, unwinding with transverse oscillation
possible.
FIXED EVAPORATOR SYSTEMS FOR:
Thermal evaporator for resistance heated inter metallic composite.
Continuous aluminum wire feed system; observation by stroboscope.
HIGH PRECISION PROCESS CONTROL:
Integrated process control system (PLC) with safety interlockings.
Application
Various customers have made decsions for this vacuum metallizing
machine serie, the application area of this metalliser is large:
- pharmaceutical packaging,
- tobacco packaing,
- laser film, hot stamping film
- transfer film, dielectric film
Packaging & Delivery
1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving
the product, please feel free to contact us. Problems would be
solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well
known both at home and abroad.
Our Factory
Our customers
FAQ
Q: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q:Where is your factory located? Can I visit it before I place an order?
A:Our factory is located in Hefei, Anhui,China; Welcome to visit our
factory.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for
all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided
within 48 hours.
Q. Machine installation
A. We could assign the technician to the place for the on-site
installation if requested by the purchaser.
