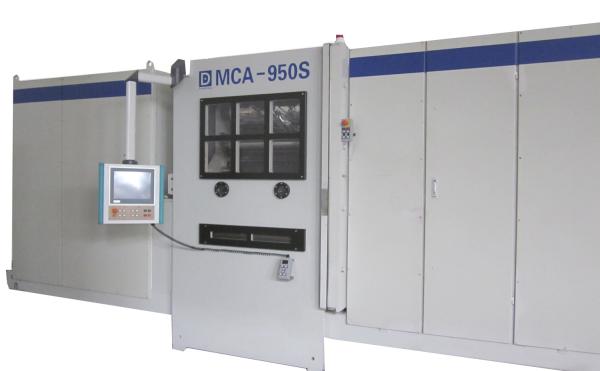

China Copper Metallizer Film Roll To Roll Vacuum Metallizing
Machine For Capacitor Film
Product Description
-The newly designed evaporator system has high evaporation rate,
good uniformity, and single-sided wire feeding.
-A programmable controller with automatic process start/stop
function.
-Touch screen operation.
-The cooling and heating device is used for deep cooling of the
coating drum to avoid thermal damage.
-The winding system adopts an advanced four roll four motor
constant tension system, including four independent Siemens AC
motors;
-Outer diameter online measurement system.
-Fault diagnosis system.
-Cold trap system.
Technical Data
| Substrate | OPP,PET,PI,etc. |
| Substrate Width | max.1200mm |
| Substrate thickness | 0.1μm-1.5μm |
| Heating method | Evaporation boat |
| Power supply | AC380V 50Hz + PE |
| Coating material | metal, plastic, impregnated paper |
| Core diameter (inside) | 76 mm or 152 mm |
| Coating material | Al.only;Zn.,Al. |
Kind of coating | One side |
Basic Features
1. High precision winding-system:
Digital winding electronic, unwinding with transverse oszillation
possible. two different rewind mode.
2. Spreader roller:
Metal straight spreader rollers for uniform tension across the
total web width and uniform coating & rewinding.
3. Combined mode evaporation system for:
1)ALUMINIUM SOURCE
Thermal evaporator for resistance heated inter metallic composite.
Continuous aluminium wire feed system which can be observation
conveniently.
2)ZINC SOURCE
Radiation heated furnace for zinc evaporation. Nozzle plates for
uniform or reinforced edge coating.
4. Advanced oil blocking system:
Advanced oil masking system for producing non-metallic stripes in
the direction of web paper. Multi position high-precision remote
control adjustment of the oil evaporation tube, with digital
indications on the touch screen. Radiation oil heating and oil
pollution prevention design.
5. Precision process control:
The industrial PC control system is based on window operation and
adopts a BECKHOFF TFT touch screen. Ethernet connection facilitates
remote diagnosis, data login, and software updates, and has
security interlocking.
Application
Packaging & Delivery
1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving
the product, please feel free to contact us. Problems would be
solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well
known both at home and abroad.
Our Factory
Our customers
FAQ
Q: Where is your factory located? Can I visit it before I place an
order?
A: Of course, warmly welcome to visit our factory. Our factory is located in Hefei, Anhui,China.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for
all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided
within 48 hours.
Q. Payment Terms
A. TT 30% down payment, 70% before shipment.
Q. Machine installation
A. We could assign the technician to the place for the on-site
installation if requested by the purchaser.
