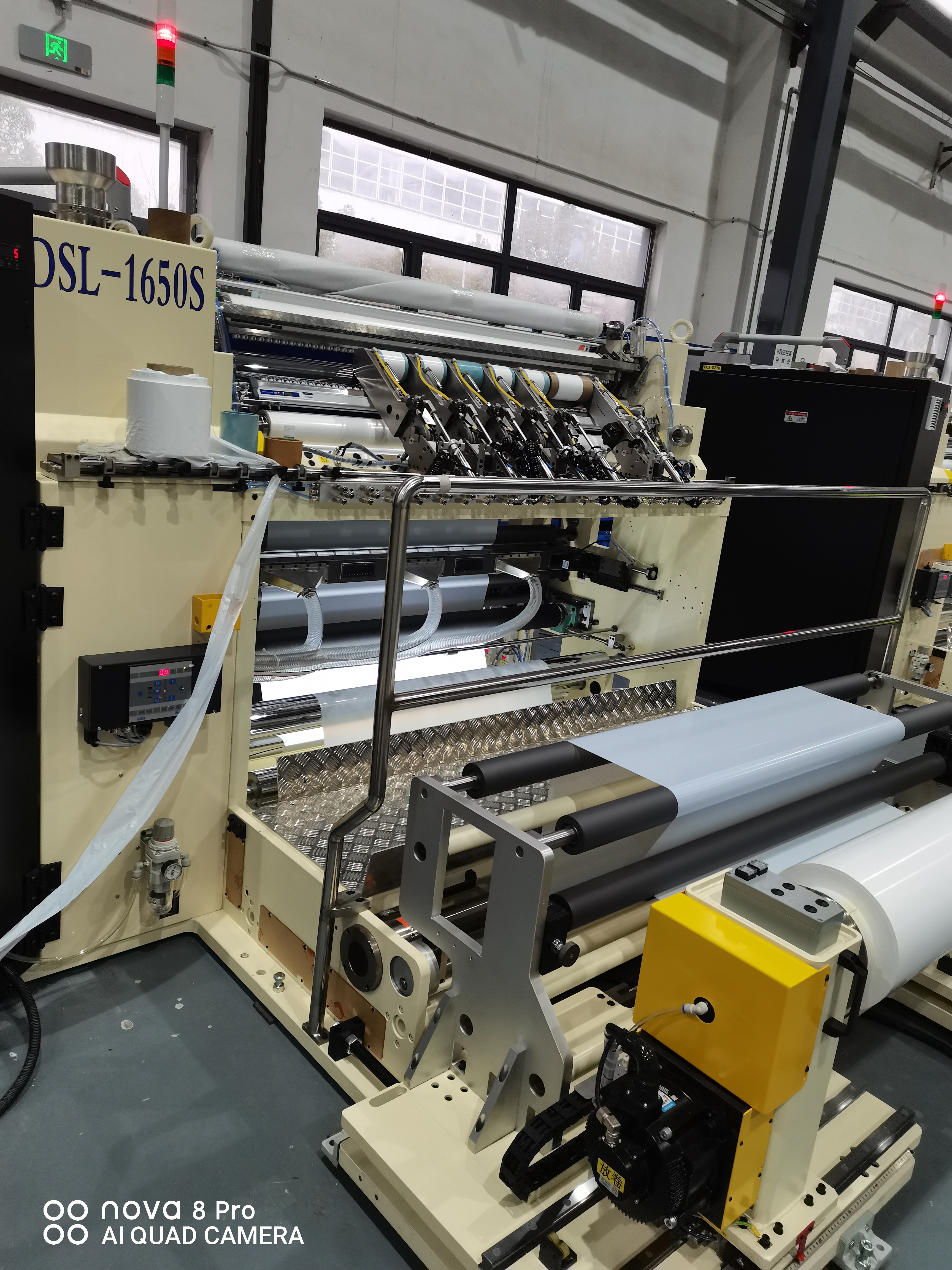

Slitter-DSI Series Independent Arm Slitting Rewinder Machine
Slitting Rewinder Machine is suitable for cutting thinner materials, supporting smaller edge
cutting amount, providing higher cutting speed, and the tension
control accuracy of the equipment can reach 25 ± 0.5N.
1. Equipped with a pneumatic shaft for unwinding and rewinding.
2. Main motor with frequency converter for speed regulation
3. The unwinding adopts magnetic brake to control tension.
4.The width of the machine and the number of blades depend on the
customer.
5. Automatic unwinding and loading/unloading device (optional)
- Main Technical Parameters
(1) Minimum Thickness: OPP min.3um, , PET min.1.5um
(2) Minimum cutting width: 4.5mm
(3) Minimum cutting edge: 0.4mm
(4) Maximum unwinding diameter: 600mm
(5) Maximum rewinding diameter: 350mm
(6) Maximum mechanical design speed: 300m/min
(7) Maximum working speed: 150m/min
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well
known both at home and abroad.
Q1: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q2: Where is your factory located? Can I visit it before I place an
order?
A: Of course, welcome to visit our factory. Our factory is located
in Hefei, Anhui,China.
Q3: Which countries have you exported to?
A: We have exported our products to all over the world, such as
Europe, USA, Japan, Korea, India etc.
Q4: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for
all machinery.
The response is available within 12 hours while the solution for
the troubleshooting is provided within 48 hours.
Q5: Payment Terms
A: TT 30% down payment, 70% before shipment.
Q6: Machine installation
A: We could assign the technician to the place for the on-site
installation if requested by the purchaser.
